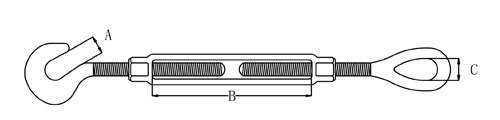

HOT DIP GALVANIZED DROP FORGED TURNBUCKLE HOOK & EYE, HOOK & HOOK
Stock No. Thread Dia  & Take Up  W.L.L.  (lbs) Weight        (lbs) Dimensions (in)
A B C
TBHG014004HE/HH 1/4 X 4 400 0.30 0.45 4.00 0.34
TBHG516412HE/HH 5/16 X 4 1/2 700 0.47 0.50 4.50 0.44
TBHG038006HE/HH 3/8 X 6 1000 0.75 0.56 6.00 0.53
TBHG012006HE/HH 1/2 X 6 1500 1.60 0.66 6.00 0.72
TBHG012009HE/HH 1/2 X 9 1500 1.83 0.66 9.00 0.72
TBHG012012HE/HH 1/2 X 12 1500 2.08 0.66 12.00 0.72
TBHG058006HE/HH 5/8 X 6 2250 2.75 0.84 6.00 0.88
TBHG058009HE/HH 5/8 X 9 2250 3.13 0.84 9.00 0.88
TBHG058012HE/HH 5/8 X 12 2250 3.50 0.84 12.00 0.88
TBHG034006HE/HH 3/4 X 6 3000 3.89 0.98 6.00 1.00
TBHG034009HE/HH 3/4 X 9 3000 4.61 0.98 9.00 1.00
TBHG034012HE/HH 3/4 X 12 3000 5.43 0.98 12.00 1.00
TBHG034018HE/HH 3/4 X 18 3000 7.25 0.98 18.00 1.00
TBHG078012HE/HH 7/8 X 12 4000 8.10 1.13 12.00 1.25
TBHG078018HE/HH 7/8 X 18 4000 9.95 1.13 18.00 1.25
TBHG001006HE/HH 1 X 6 5000 9.33 1.25 6.00 1.44
TBHG001012HE/HH 1 X 12 5000 11.93 1.25 12.00 1.44
TBHG001018HE/HH 1 X 18 5000 14.00 1.25 18.00 1.44
TBHG001024HE/HH 1 X 24 5000 17.25 1.25 24.00 1.44
TBHG114012HE/HH 1 1/4 X 12 6500 19.00 1.50 12.00 1.81
TBHG114018HE/HH 1 1/4 X 18 6500 23.00 1.50 18.00 1.81
TBHG114024HE/HH 1 1/4 X 24 6500 27.00 1.50 24.00 1.81
TBHG112012HE/HH 1 1/2 X 12 7500 27.50 1.88 12.00 2.12
TBHG112018HE/HH 1 1/2 X 18 7500 31.00 1.88 18.00 2.12
TBHG112024HE/HH 1 1/2 X 24 7500 37.50 1.88 24.00 2.12
*Ultimate load is 5 times working load limit
