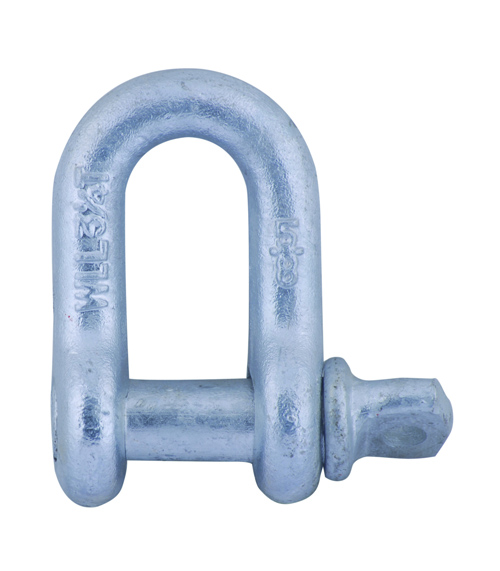

HOT DIP GALVANIZED DROP FORGED CHAIN SHACKLE

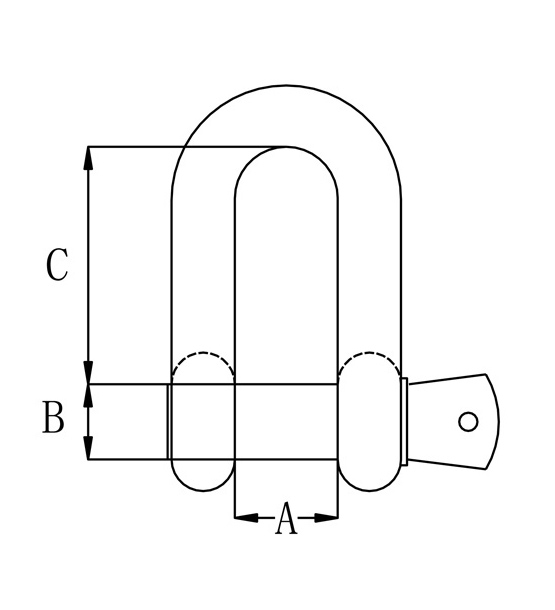

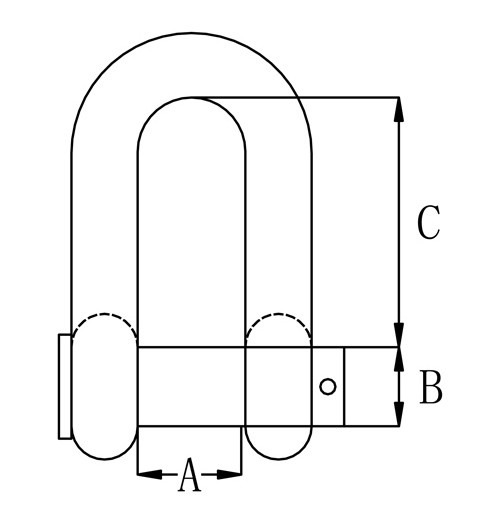

Stock No. Nominal Size W.L.L Dimensions(in) Weight(lbs) Weight(lbs)
(in) (tons) A B C Screw Pin Type Round Pin Type
HGLR014SPCS/RPCS   1/4   1/2 0.47 0.31 0.88 0.11 0.11
HGLR516SPCS/RPCS   5/16   3/4 0.53 0.38 1.03 0.17 0.18
HGLR038SPCS/RPCS   3/8 1      0.66 0.44 1.25 0.28 0.25
HGLR716SPCS/RPCS   7/16 1  1/2 0.75 0.5 1.44 0.43 0.4
HGLR012SPCS/RPCS   1/2 2      0.81 0.63 1.63 0.59 0.5
HGLR058SPCS/RPCS   5/8 3  1/4 1.06 0.75 2 1.25 1.21
HGLR034SPCS/RPCS   3/4 4  3/4 1.25 0.88 2.38 2.63 2
HGLR078SPCS/RPCS   7/8 6  1/2 1.44 1 2.81 3.16 3.28
HGLR001SPCS/RPCS 1      8  1/2 1.69 1.13 3.19 4.75 4.75
HGLR118SPCS/RPCS 1  1/8 9  1/2 1.81 1.25 3.58 6.75 6.3
HGLR114SPCS/RPCS 1  1/4 12      2.03 1.38 3.94 9.06 9
HGLR138SPCS/RPCS 1  3/8 13  1/2 2.25 1.5 4.38 11.63 12
HGLR112SPCS/RPCS 1  1/2 17      2.38 1.63 4.81 15.95 16.15
HGLR134SPCS/RPCS 1  3/4 25      2.88 2 5.75 26.75 29.96
HGLR002SPCS/RPCS 2      35      3.25 2.25 6.75 42.31 43.25
HGLR212SPCS/RPCS 2  1/2 55      4.13 2.75 8 71.15 73.33
Ultimate load is 6 times working load limit
