HOT DIP GALVANIZED DROP FORGED REGULAR NUT EYE BOLT
Stock No . Shank Working Weight Dimension (in)
Dia & Length Load Limit Per 100

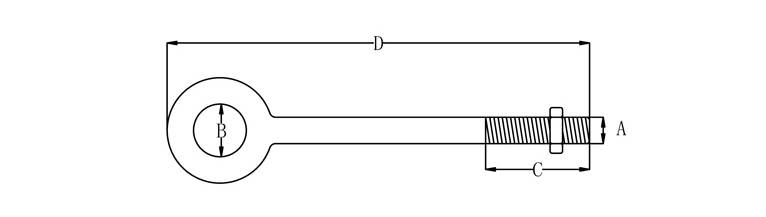

(in) (lbs) (lbs) A B C D
RNEBHG014002 1/4 x 2 500 8.2 0.25 0.5 1.5 3.06
RNEBHG014004 1/4 x 4 500 11.7 0.25 0.5 2.5 5.06
RNEBHG516214 5/16 x 2 1/4 800 13.3 0.31 0.62 1.5 3.56
RNEBHG516414 5/16 x 4 1/4 800 25 0.31 0.62 2.5 5.56
RNEBHG038212 3/8 x 2 1/2 1200 23.3 0.38 0.75 1.5 4.12
RNEBHG038412 3/8 x 4 1/2 1200 29.5 0.38 0.75 2.5 6.12
RNEBHG038006 3/8 x 6 1200 35.2 0.38 0.75 2.5 7.62
RNEBHG012314 1/2 x 3 1/4 2200 50.3 0.5 1 1.5 5.38
RNEBHG012006 1/2 x 6 2200 66.1 0.5 1 3 8.12
RNEBHG012008 1/2 x 8 2200 82 0.5 1 3 10.12
RNEBHG012010 1/2 x 10 2200 88 0.5 1 3 12.12
RNEBHG012012 1/2 x 12 2200 114.2 0.5 1 3 14.12
RNEBHG012015 1/2 x 15 2200 116.85 0.5 1 4 17.12
RNEBHG058004 5/8 x 4 3500 103.1 0.62 1.25 2 6.69
RNEBHG058006 5/8 x 6 3500 118.2 0.62 1.25 3 8.69
RNEBHG058008 5/8 x 8 3500 135.1 0.62 1.25 3 10.69
RNEBHG058010 5/8 x 10 3500 153.6 0.62 1.25 3 12.69
RNEBHG058012 5/8 x 12 3500 167.1 0.62 1.25 4 14.69
RNEBHG058015 5/8 x 15 3500 201.16 0.62 1.25 5 17.69
RNEBHG058024 5/8 x 24 3500 279.1 0.62 1.25 6 26.69
RNEBHG034412 3/4 x 4 1/2 5200 168.6 0.75 1.5 2 7.69
RNEBHG034006 3/4 x 6 5200 184.5 0.75 1.5 3 9.19
RNEBHG034008 3/4 x 8 5200 207.9 0.75 1.5 3 11.19
RNEBHG034010 3/4 x 10 5200 235 0.75 1.5 3 13013
RNEBHG034012 3/4 x 12 5200 257.5 0.75 1.5 4 15.19
RNEBHG034015 3/4 x 15 5200 298 0.75 1.5 5 18.19
RNEBHG078005 7/8 x 5 7200 270 0.88 1.75 2 8.75
RNEBHG078008 7/8 x 8 7200 308 0.88 1.75 4 11.75
RNEBHG078012 7/8 x 12 7200 400 0.88 1.75 4 15.75
RNEBHG001006 1 x 6 10000 421 1 2 3 10.31
RNEBHG001009 1 x 9 10000 468.5 1 2 4 10.31
RNEBHG001012 1 x 12 10000 540 1 2 4 16.31
RNEBHG001018 1 x 18 10000 650 1 2 7 22.31
RNEBHG114008 1 1/4 x 8 15200 750 1.25 2.5 4 13.38
RNEBHG114012 1 1/4 x 12 15200 900 1.25 2.5 4 17.38
RNEBHG114020 1 1/4 x 20 15200 1210 1.25 2.5 6 25.38
Ultimate load is 5 times working load limit
